Digital control constant current source

Status: Voorstel
12874
26
stemmen
5 maart 2017, Laatste update: 13 augustus 2017
This project object is an digital controlled current source with standard parts, low cost and high stability. The analog circuit is inspired by Elektor 11/77, first test on breadboard looks very good. As load three LEDs in this example. The schematic and simulation is attached.
Lees het volledige stuk
Toon minder

Attachments


Afbeeldingen

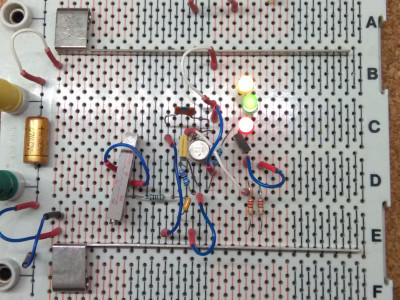

test on breadboard

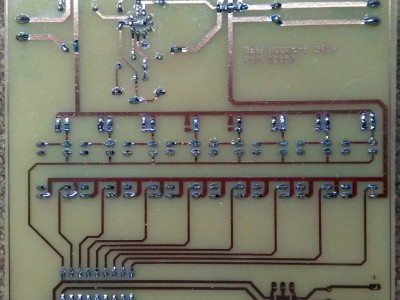

Bottom view, soldered PCB
