LoRa-controlled switch with state feedback

Status: In ontwikkeling
84
2
stemmen
16 september 2019

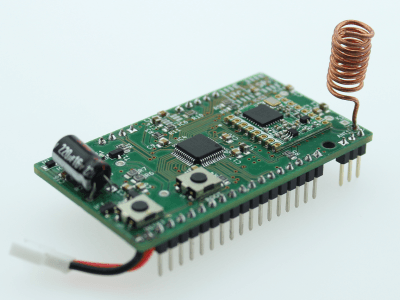

Image of LoRa Node PCV V3
LoRa-controlled switch with state feedback
The LoRa-controlled switch with state feedback is based on the LoRaWAN Node Experimental Platform, and shows the versatil use of it. Here we use only the LoRa modulaton for propriatray data exchange, no LoRaWAN included. We have one transmitter and one receiver node involved. The Transmitter uses the same water resistant enclosure as used for the LoRaWAN Node Experimental Platform, a well priced Hammond enclosure, housing two lithum rechargable batteries. Changed from the basic LoRaWAN Node Experimental Platform, we have one switch with led feedback, utilizing the spare GPIOs if the baord.

On the switch side we have also the LoRaWAN Node Experimental Platform, this time driving a relay able to switch 115V / 230V


[Update 25.10.2019]

Software is transmitting the first time peer to peer. The Hardware for the switch needed to be changed a bit as some pins were connected wrong.

[Update 31.10.2019]

Software has furter improved and the basic feature are ready. The Transmitter as also the part at the relais can be configured with a serial interface and a serial terminal, like the one you have in the arduino ide.
