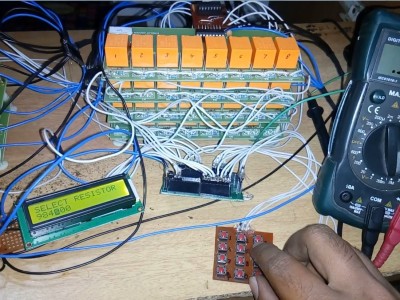

ResistorBox - Resistor Substitution Box
This project will help to select any desired resistance value in between from 0ohm to 10Mohm range at 1ohm resolution, for your electronics testing
Are you an electronics hobbyist ?!!!, doing with experiments, where some critical resistance value required , which are not commonly available in market . This project will help you select any desired resistance value in between from 0ohm to 10Mohm range at 1ohm resolution, for your electronics testing purposes. This is a PIC microcontroller based project, but possible to migrate on any microcontroller.
How it works: Video Link
https://youtu.be/i5TQZnP6tE8
How it works: Video Link
https://youtu.be/i5TQZnP6tE8
