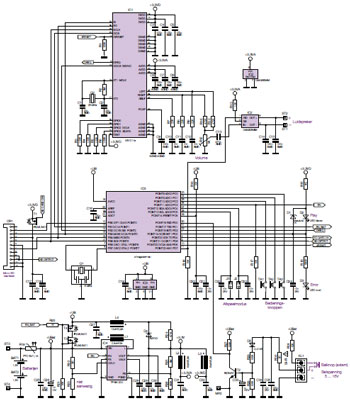

Onderdelenlijst
Weerstanden:
R1,R3...R6,R27..R29 = 100 k
R2,R25 = 1 M, 1%
R7...R9 = 22 Ohm, 1%
R10,R11 = 470 Ohm
R12 = 5 k instelpotmeter, liggend
R13,R14,R16,R17,R21,R31 = 10 k
R15 = 1k2, 1%
R18 = 560 Ohm, 1%
R19 = Polyswitch, 6 V/1,1 A, SMD1206
R20 = 1 k
R22 = 0 Ohm
R24 = 47 k, 1%
R26 = 180 k, 1%
R30 = zekeringweerstand 1 Ohm, SMD1206
Condensatoren:
(SMD0603, tenzij anders vermeld)
C1,C2 = 22 p
C3...C9,C14...C17,C19,C20,C28,C35 = 100 n
C10...C12,C21...C24,C34 = 10 n
C13 = 470 n
C18 = 1 µ
C25 = 100 n, SMD0805
C26 = 1000 µ/10 V
C27,C29...C32 = 10 µ, SMD0805
C33 = 1 µ/100 V
C36 = 1 µ, SMD0805
Spoelen:
L1 = smoorspoel 2,6 µH/3 A, SMD
L2...L4 = 10 µH/0,9 A, SMD
Halfgeleiders:
(alles SMD)
IC1 = VS1011e
IC2 = LM4906MM
IC3 = ELV101000
IC4 = TPS61200DRC
T1,T3,T4 = IRLML6401
T2 = BC848C
D1 = SMAJ8.5A-TR
D2 = LED blauw
D3 = LED rood, superhelder
D4 = BAT43
D5 = LL4148
Diversen:
Q1 = keramische resonator 8 MHz, SMD
Q2 = kristal 25,000 MHz, SMD
CR1 = micro-SD-kaarthouder TFLASH push/push
KL1 = 3-polige mini-printkroonsteen
TA1 = schakelcontact
TA2,TA3 = druktoets met maakcontact, 6 mm toetslengte
J2,J3 = 2-polige pinheader
2 jumpers
1 mini-luidspreker 8 Ohm/0,3 W, ø 66 mm
17 cm flexibel draad 0,22 mm², rood
17 cm flexibel draad 0,22 mm², zwart
1 tie-wrap 90 mm
1 schuimblok 40 x 35 x 10 mm, zelfklevend
1 behuizing MP3-deurbel MTK1
1 sticker met typeaanduiding
2 kruiskopschroeven 2,2 x 6 mm
3 kruiskopschroeven 3 x 30 mm
3 pluggen
