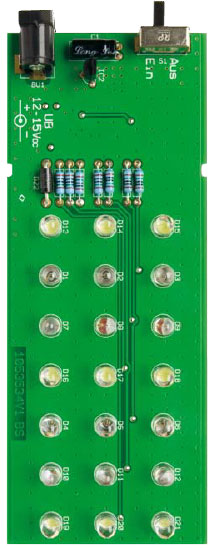

Onderdelenlijst
Onderdelenlijst
Weerstanden:
R1 = 10 k, SMD0805
R2,R3,R6...R8 = 220 Ohm
R4,R5 = 330 Ohm
R9 = PTC 33 V/0,75 A
R10 = 470 k, SMD0805
R11...R13 = 1 k, SMD0805
Condensatoren:
C1 = 10 µ/25 V
C2-C4 = 1 µ, SMD0805
C5 = 100 n, SMD0805
C6 = 100 p, SMD0805
Halfgeleiders:
IC1 = ELV10985, SMD
IC2 = 78L05
T1-T3 = BCX54, SMD
T4 = SFH3710
D1-D6 = LED 5 mm. blauw
D7-D12 = LED 5 mm, rood
D13-D21 = LED 5 mm, wit
D22 = BZW06-19B
D23 = LL4148
Diversen:
BU1 = voedingsconnector, 2,1 mm, voor printmontage
S1 = schuifschakelaar, 1x om, voor printmontage 90°
1 profielbehuizing, transparant
