The ESP as Weatherstation. He collect humidity, air pressure, temperature and may be more. Send the data to Raspi
The ESP as Weatherstation. He collect humidity, air pressure, temperature, lightvalue and may be more. He send the data over mqtt to a smart home Server, a Raspberry Pi.
Here it will be the Data stored and visualized.
The Weatherstation has to work as stand alone, too. The Data will be stored in a SD-Card and the Energy will be generated by solar power.
May be, i will find same additionals.
Here it will be the Data stored and visualized.
The Weatherstation has to work as stand alone, too. The Data will be stored in a SD-Card and the Energy will be generated by solar power.
May be, i will find same additionals.
Updates van de auteur
Walterman_2010 7 jaar geleden
My IOT Weatherstation is working. Now have other people to chosse, I have a chance i this hard competitor.
Following are the dokumentation as PDF, the program and a lot of pictures.
same Doku, just as word Doc data (5116kb)
it is a arduino Program in Win rar Archiv (4kb)
Walterman_2010 7 jaar geleden

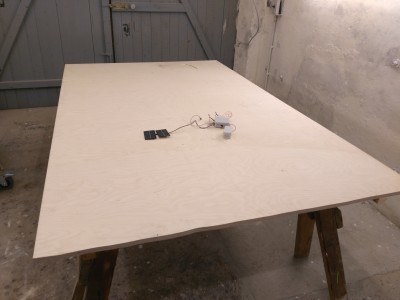

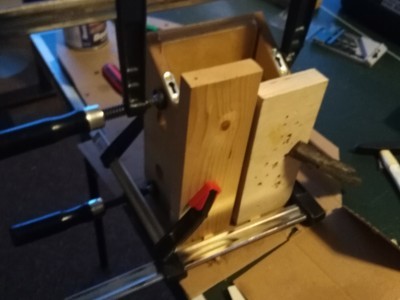

I allready added the solar panel and the case.
all the stuff (516kb)

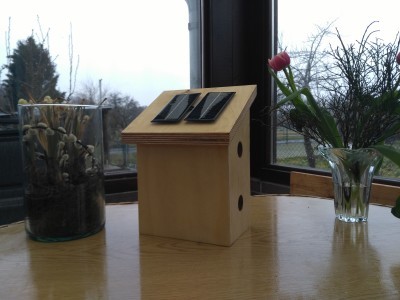

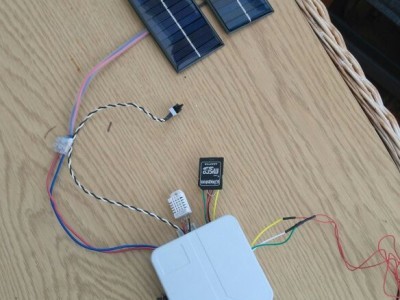

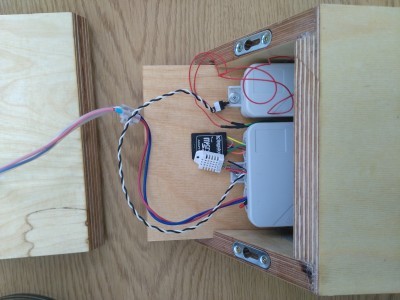

the Wetherstation in Case and with Solar... (115kb)
Walterman_2010 7 jaar geleden
Walterman_2010 7 jaar geleden
new looking the HTTP Page (16kb)
Walterman_2010 7 jaar geleden
It is a glas window with glued mirror foile and a wodden frame.
Walterman_2010 7 jaar geleden

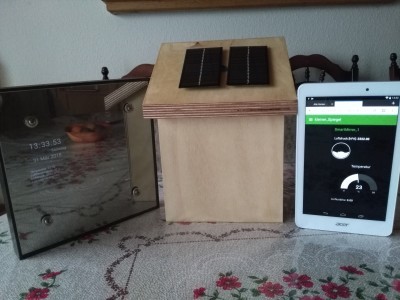

I like to build an old smart phone to a smart mirrow.
I wrote a mal app in app Inventor (a free google tool) to show the Values and a watch... see the pictures.
The problem was, that the Web Window in App Inventor can´t show the Node Red Dashbord. I think he don´t like Java, but I am not sure with it.
also the ESP had to create a HTTP web page what can showed in the Web Window.
The ready mirrow I will show next time.
choose the Ip, where you get the Data (958kb)

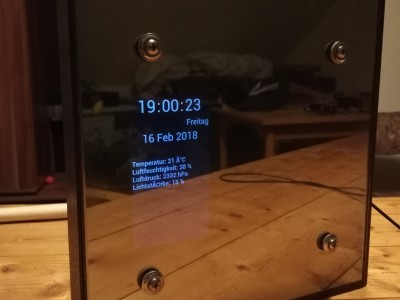

show a watch, the day, the date and my wether data. A smal invisible button left of the day, send you back to the init page (764kb)
app inventor creation init page (18kb)
just save the Server Adress in a Database (27kb)
the Data get showed over a WebWindow. The HTTP Server is on the ESP32 (34kb)
this folw make the Wath an Calendar. And he update ervery 30 sec the WebWindow to show actualy Values. (106kb)
Walterman_2010 7 jaar geleden
Even he don´t make the wordwrap.
Walterman_2010 7 jaar geleden
the Flow for the Visualization (47kb)
Walterman_2010 7 jaar geleden

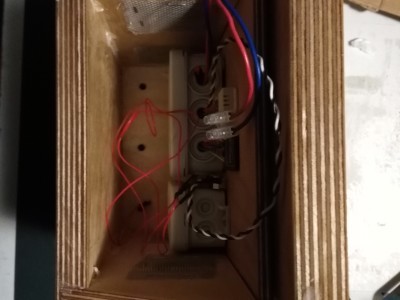

The most of elektronik is soldered

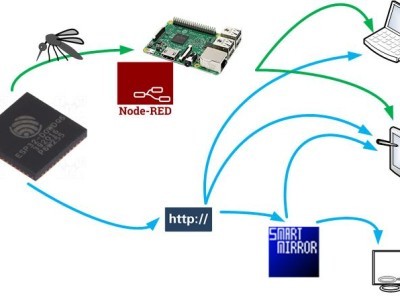

On my Raspberry Pi is already a MQTT and Node Red Server.
So can the ESP32 Send the sensor data over MQTT and it get handled and visualized by Node Red
Solar Panel, DC/DC step up, charge controll (2163kb)

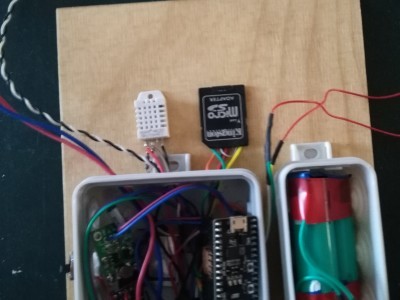

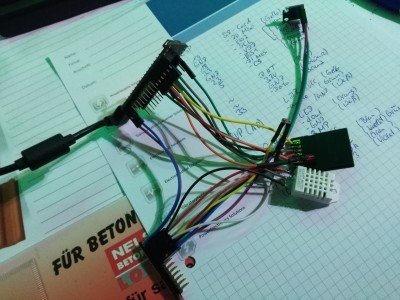

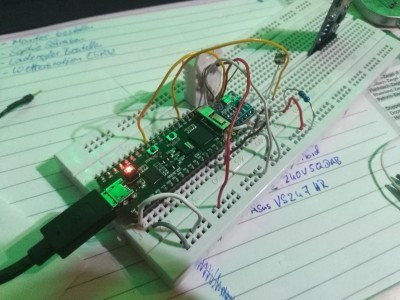

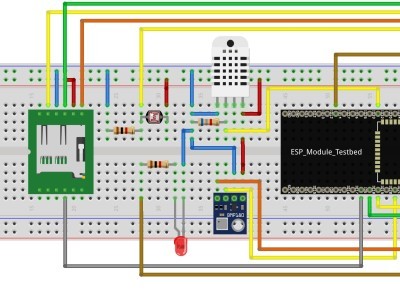

ESP 32 with Datacontroll and Sensors (2124kb)
