True RMS Digital Voltmeter
with frequency counter
Materials
Gerber bestand
De PCB bij dit artikel is als Gerber file beschikbaar gesteld. Elektor Members kunnen exclusief deze files gratis downloaden en gebruiken om de PCB zelf af te drukken met geschikte apparatuur óf de Gerber te laten drukken via een dienstverlener.
Elektor kan u bijvoorbeeld de PCB Service van onze partner Eurocircuits van harte aanbevelen of AISLER.
Het gebruik van onze Gerber files is vrijgegeven onder een Creative Commons- licentie. Creative Commons biedt auteurs, wetenschappers en andere creatieve makers de vrijheid om op een flexibele manier met hun auteursrechten om te gaan.
Extra info / Update
Main Characteristics
- Four measurement ranges: 0.1 V, 1 V, 10 V, 100 V
- Voltmeter bandwidth: 20 Hz to 1 MHz (basic accuracy ±1.0 % of full scale)
- Frequency counter bandwidth: 1 Hz to 10 MHz (typ.), 25 MHz (max.) (±timebase error)
- Minimum input voltage for counter: approximately 50 mVRMS
- Input impedance: = 1 MO || = 50 pF
- Counter timebase: 100 ms, 1 s
- Adjustable trigger level: approximately ±0.15 V
- Autoranging (may be disabled)
- Offset correction and calibration facility
- Automatic scaling of frequency display
- Voltage displayed as RMS value or peak-to-peak value (for sinusoidal input)
- Crest factor: =4
- Two measurement inputs
Onderdelenlijst
Measurement Amplifier
Resistors
R1,R2, R5 = 47Ohm (SMD 0805)
R3,R4 = 27Ohm (SMD 0805)
R6 = 100k
R7 = 10k (SMD 0805)
R8 = 470kO (SMD 0805)
R9 = 900kO 0.1%
R10,R11 = 4kO7
R12 = 90kO 0.1%
R13 = 9kO 0.1%
R14 = 1kO 0.1%
R15 = 430Ohm (SMD 0805)
R16 = 430Ohm (SMD 1206)
R17 = 4kO7 (SMD 0805)
R18 = 4kO7 (SMD 0805)
P1 = 10kO (Alps type 290061)
Capacitors
C1,C2,C11,C13,C16,C19 = 100nF (SMD 0805)
C3,C4,C10,C12 = 4µF7 10V (293D/A)
C5,C6 = 10nF (SMD 0805)
C7 = 27pF (SMD 0805)
C8 = 10nF
C9 = 1nF (SMD 0805)
C14 = 1µF 10V (SMD 0805)
C15 = 10µF 10V (SMD 0805)
C17,C18 = 10µF 10V (293D/A)
C20,C21 = 2.5-35pF trimmer (C-TRIMM808-7.5)
C22 = 2nF2
C23 = 22nF
C24,C25 = 220pF
Semiconductors
IC1= ADA4862-3 (SMD)
IC3 = LTC1968CMS8 (MSOP-8)
IC4 = LT1016CS8 (SO-8)
D1,D2 = BAS45 (1N4148)
D3,D4 = BZW55-2.7 (SMD)
T1 = Dual FET PMBFJ620 (NXP)
Miscellaneous
Re1–Re4 = SIL7271-L 5V or MEDER SIL05-IA72-7ID
K1,K2,K3 = 2-way pinheader
K4,K5 = 4-way pinheader
2x SMA case socket
Metal case e.g. TEKO # 372
BNC case socket
Miniature rocker switch
7x 1nF feedthrough capacitor

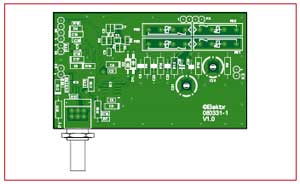

PCB # 080331-1, see www.elektor.com/shop
Display board
Resistors
R3,R5 = 10kO (SMD 0603)
R4 = 10k
R6 = 33k (SMD 0603)
R7 = 4kO7 (SMD 0603)
R8 = 100kO (SMD 0603)
R11,R12,R13,R14 = 1kO (SMD 0805)
R15 = 1kO (SMD 0603)
Capacitors
C2,C4 = 1µF 10V (SMD 0603)
C3,C6,C7 = 100nF (SMD 0603)
C5 = 4µF7 10V (SMD 0603)
C8 = 18pF (SMD 0603)
C9 = 27pF (SMD 0603)
C10= 20pF trimmer (C-TRIMMCTZ3)
Semiconductors
IC1 = R8C13 (R5F21134FP, LQFP32) IC2 = LTC2420CS8 (SO-8)
IC3 = LT1790ACS6-2.048 (SOT23-6)
D1..D4 = 1N4148 (SOD-323)
T1 = BC558C (SOT-23)
T2–T6 = 2N7002 (SOT-23)
LED1–LED4 = LED, green (SMD 1206)
LED5 = LED, 3mm
Miscellaneous
LCD1 = LCD 2×16
JP1 = 2-way pinheader and jumper
K1,K2,K3 = 2-way pinheader
K4,K5 = 4-way pinheader
X1 = 20MHz quartz crystal, HC-49US12SMD
S1-S4 = pushbutton (Schurter # 1241.1614)
S5 = pushbutton (6mm)
PCB # 080331-2, see www.elektor.com/shop
